Wearwell Foundation Platform System Diamond-Plate 4Hx18Wx36L Inch Kit

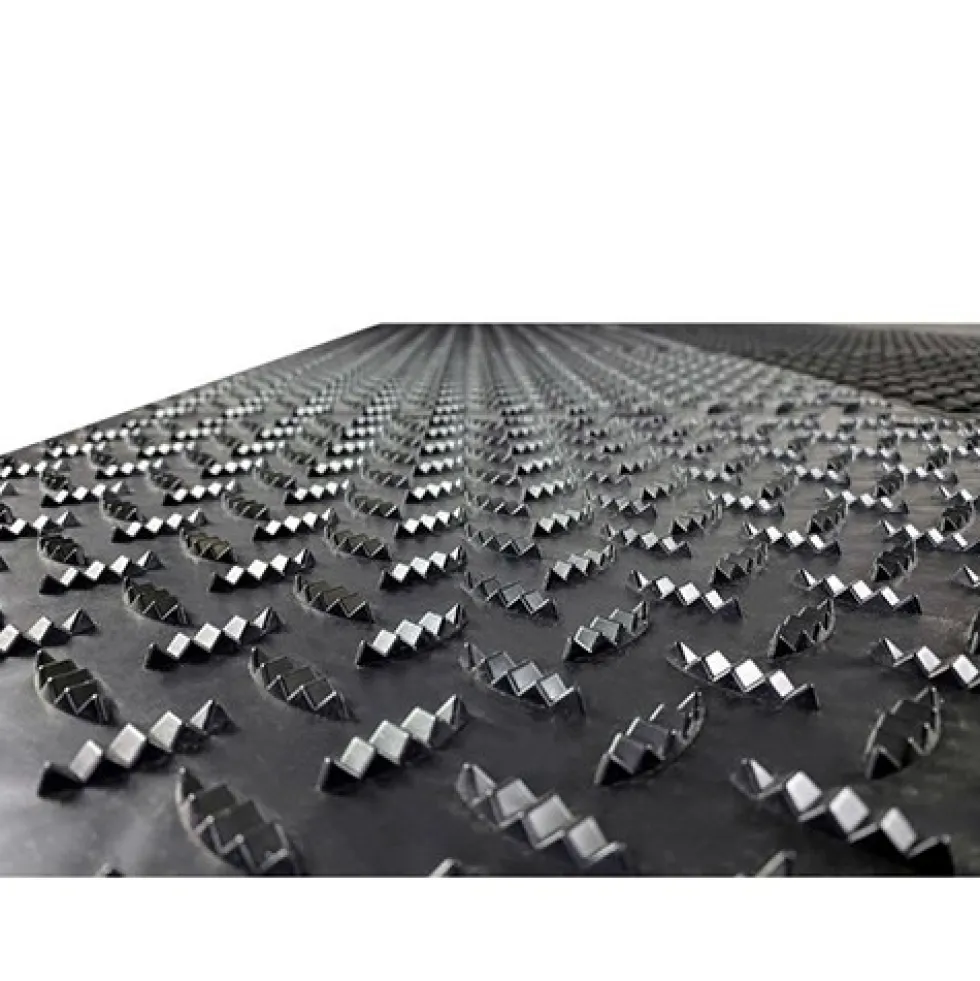

1. Maximize traction with the rugged diamond plate surface
2. Enjoy an ergonomic industrial flooring platform
3. Easily assemble with the modular design
4. Choose durability with corrosion-resistant extruded aluminum
5. Raise employees with the 4-inch-high platform
6. Go eco-friendly with recycled polypropylene tiles
7. Enjoy versatility with each tile’s 400-pound load rating
8. Invest in a platform made in the USA

NOTE: This item is a custom order and is not returnable.

Wearwell Foundation Platform System Diamond-Plate 4Hx18Wx36L In. Kit contains: 2 tiles and 2 beams

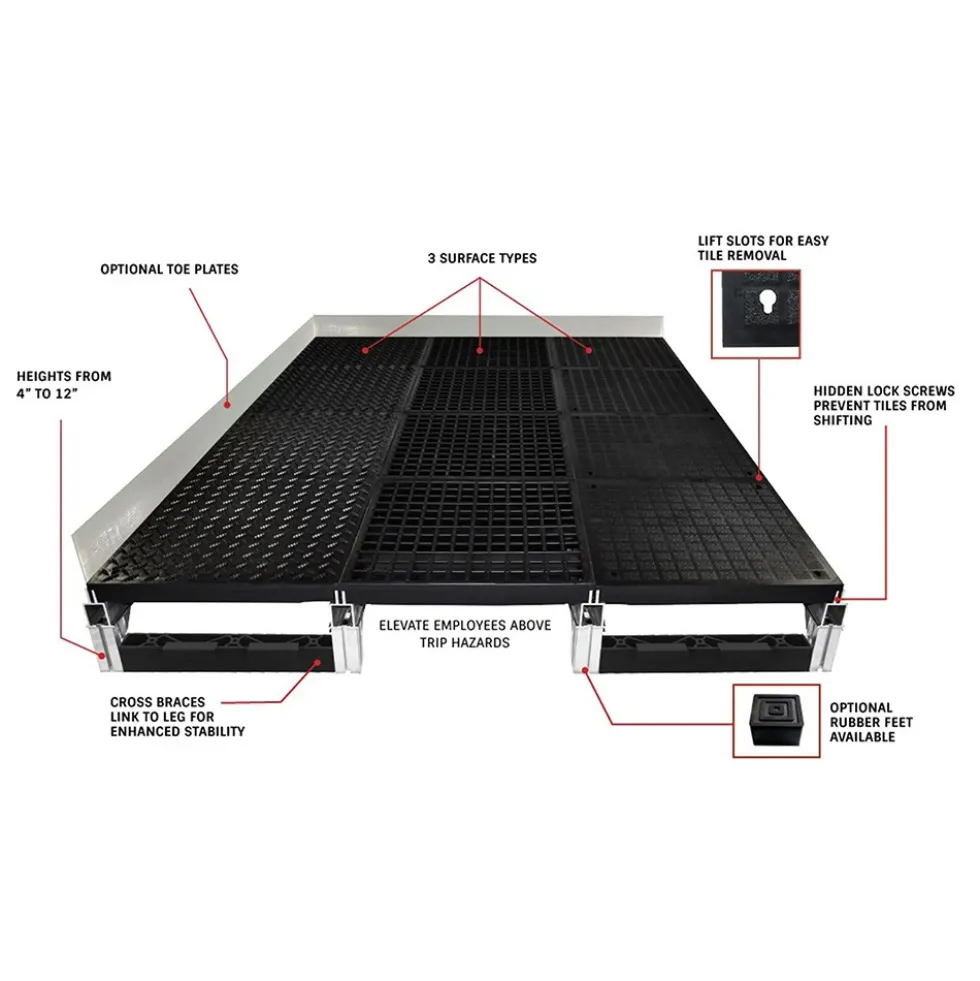

Discover a Diamond Plate Platform Designed for Industrial Settings

This system features a lightweight and portable aluminum frame, making it much more versatile than metal or wood platforms. The aluminum is more resistant to oxygen, and it forms a protective layer of oxide on the surface when exposed to air. Aluminum retains its strength indefinitely and is 100% recyclable, making the system a long-lasting investment.

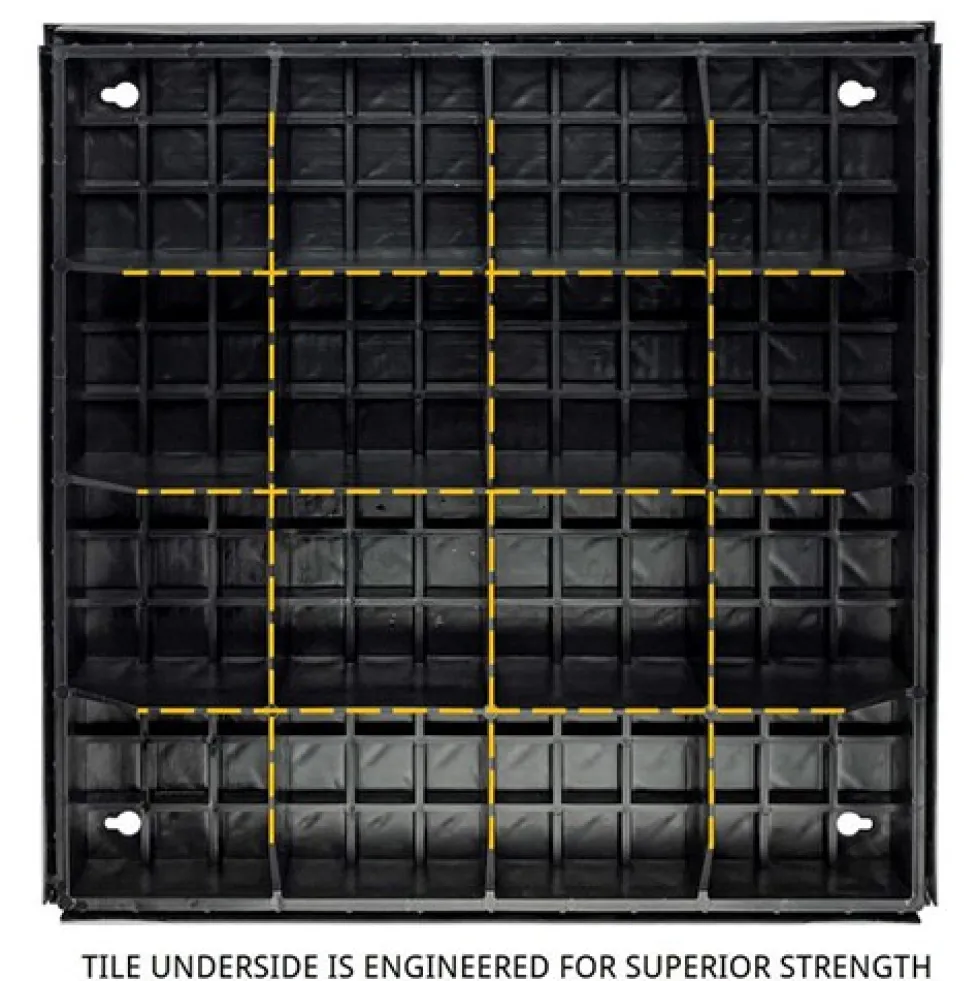

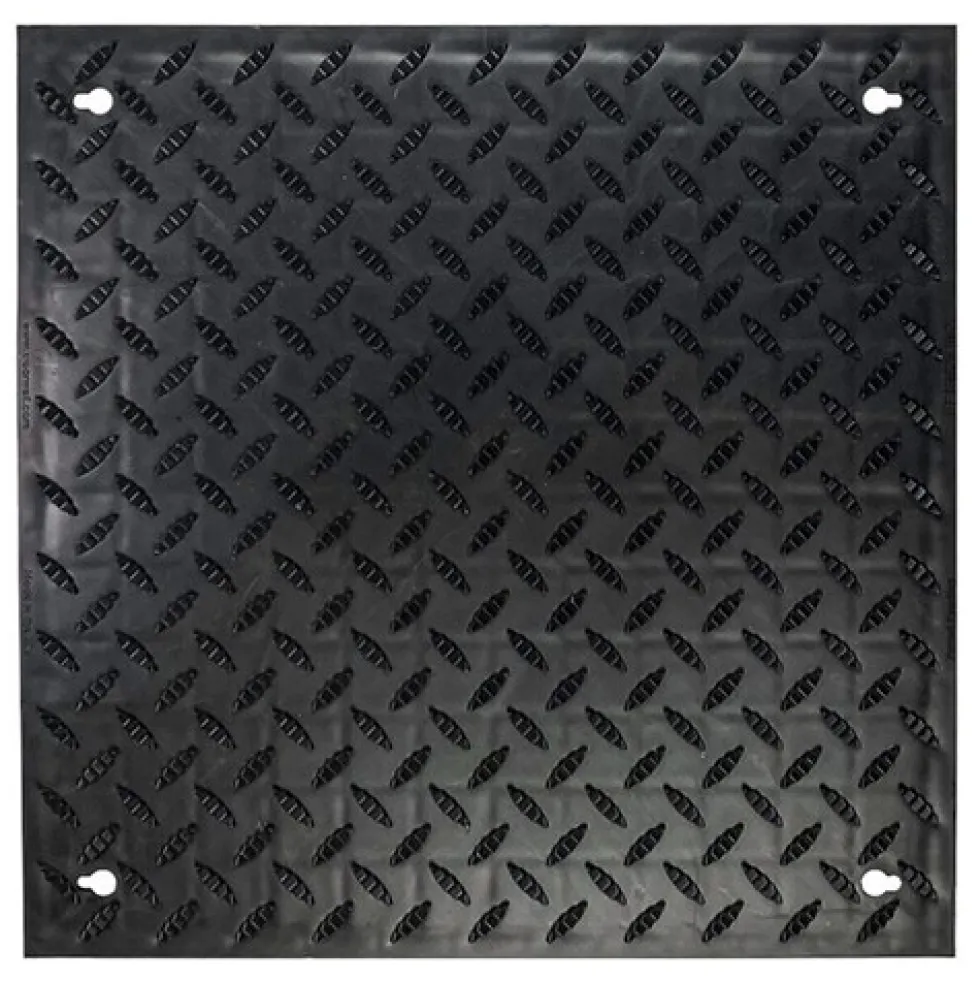

The platform tiles are manufactured with 100% post-consumer polypropylene. Each tile is supremely strong and features a 400-pound load rating.

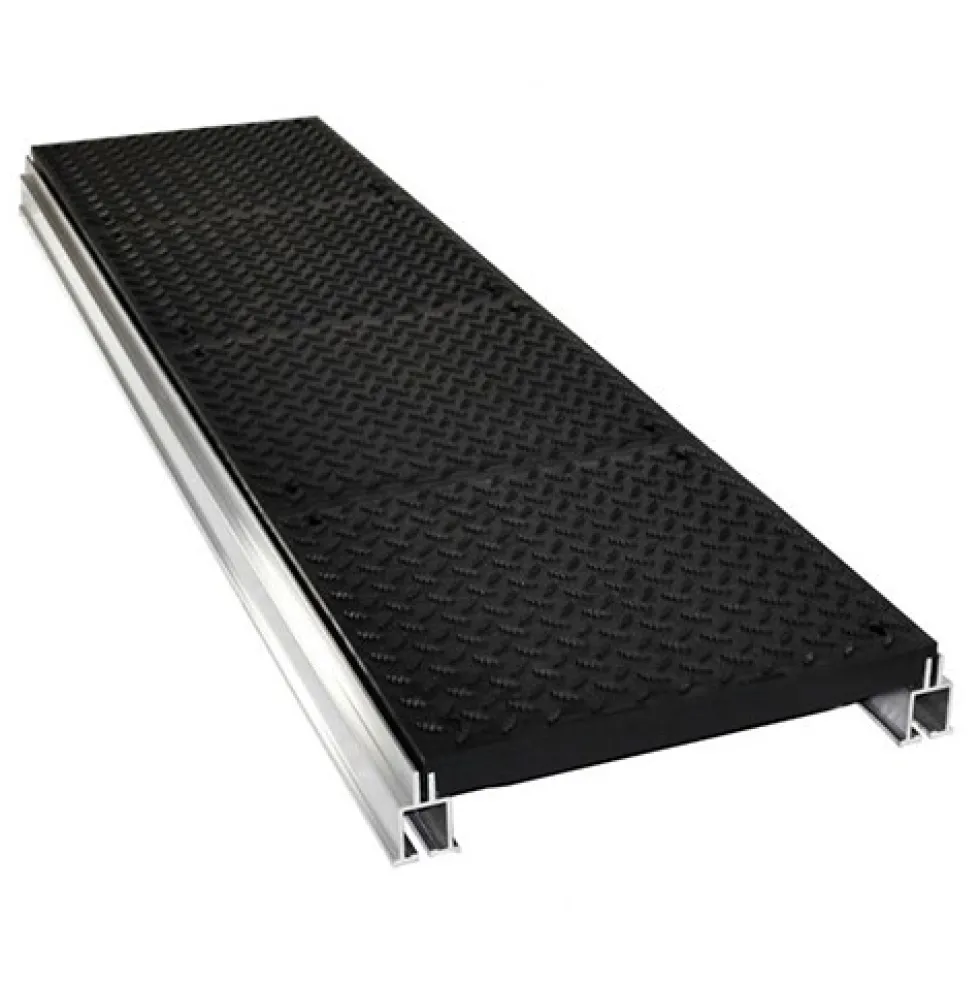

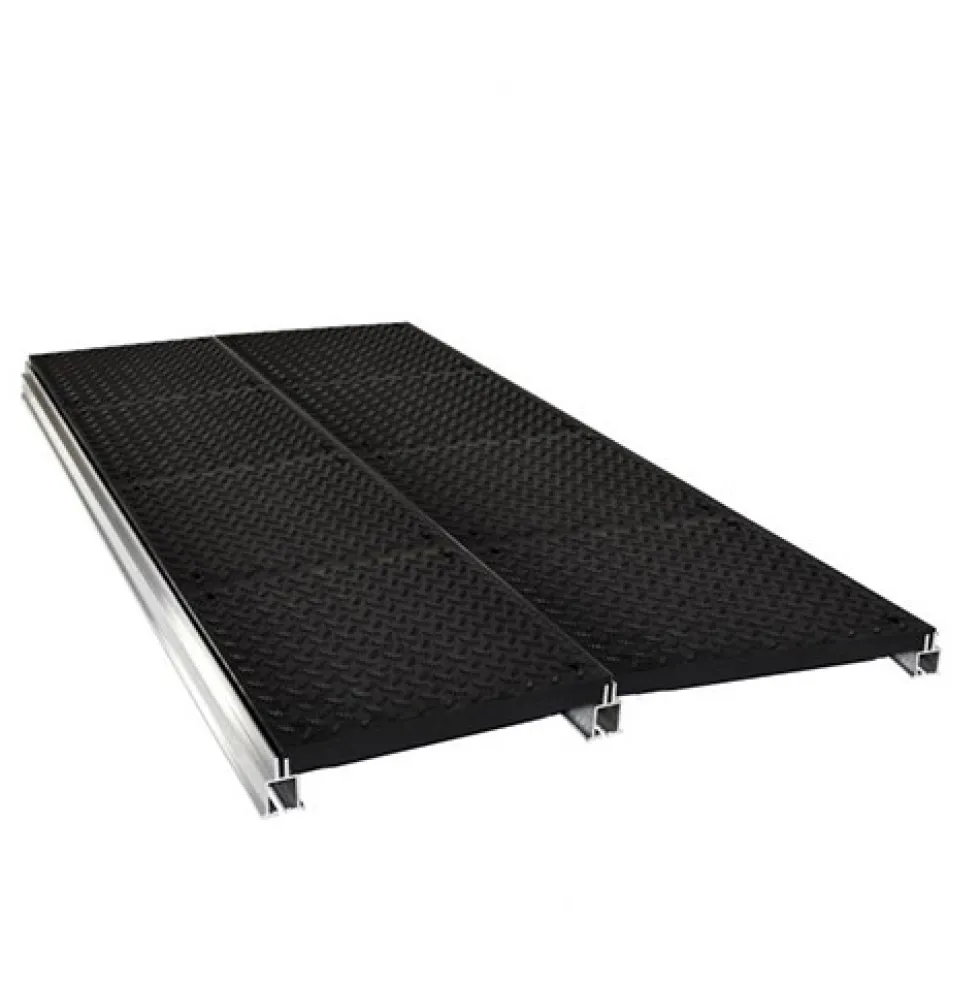

Experience the Versatility of a Modular Aluminum Working Platform

The platform’s modular design is more versatile, and it’s available in a range of heights, lengths, widths, and platform options to meet your workplace needs.

Assembly and installation are easy. The lightweight platform delivers the support your team needs, and the tiles have lift slots in each corner for easy removal.

You can further customize the system with accessories, including toe plates and anchor kits, ensuring it delivers the performance you need.

Test Results

• Flammability: FMVSS 302: Pass B
• Taber Abrasion: ASTM D3884: 0% @1000 cycles
• Temperature Range: 32-160 degrees Fahrenheit
• Coefficient of Friction: ASTM F2913-19: 1.09 dry, 0.90 wet

Accessories

Accessories are available for making a platform larger or anchoring to the floor.

Concrete Anchor Kit for 4-inch High Platforms: anchor kits to the concrete
38-inch Toe Plate: keeps objects from falling off platforms
6-foot Toe Plate: keeps objects from falling off platforms
Beam Joint Kit for 4-inch High Platforms: use to join two kits end for end

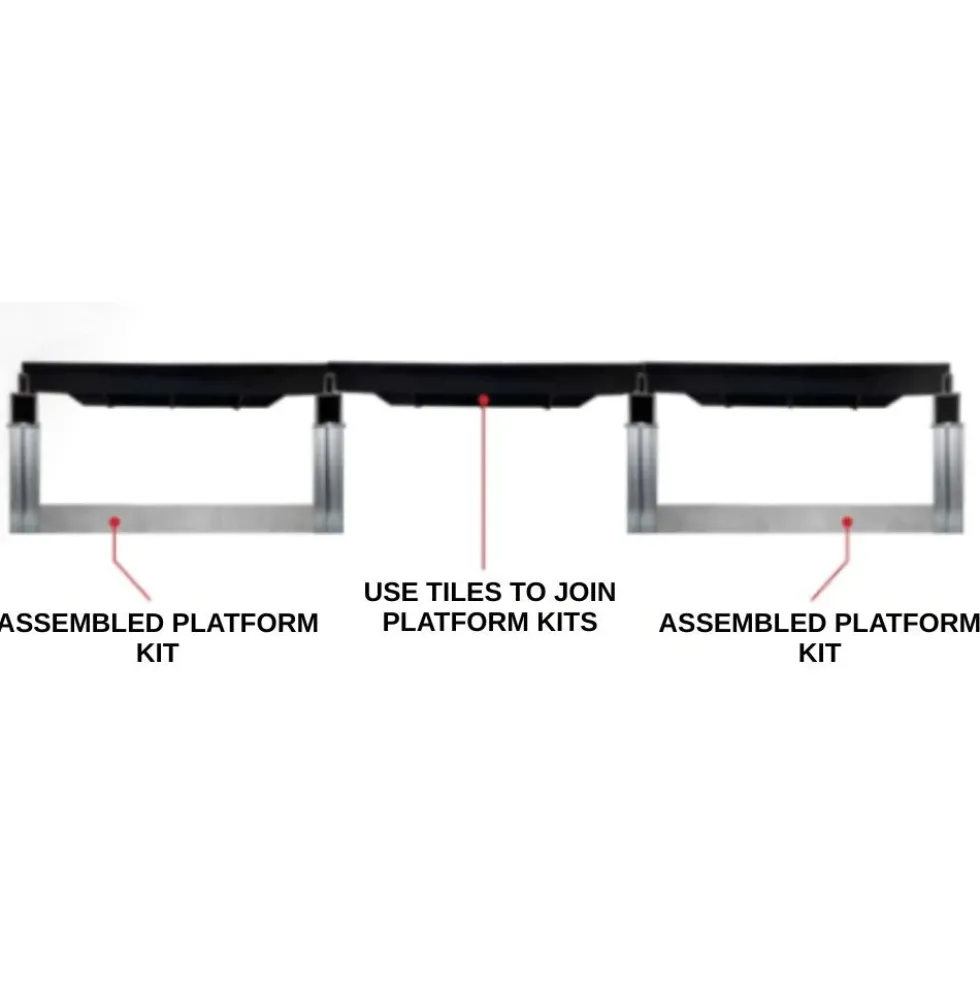

Diamond Plate Tiles Case of 4: use to connect multiple platform kits together

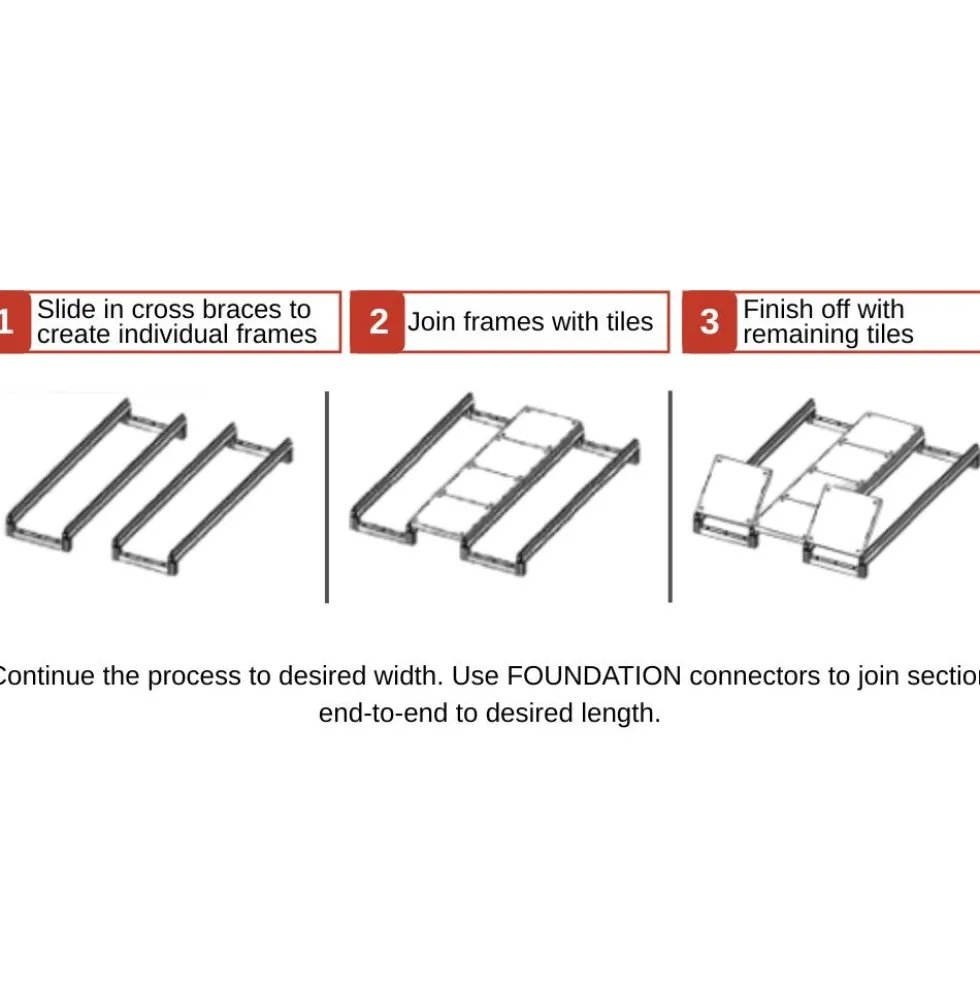

Installation of Modular Work Platforms

First slide in the cross braces to create individual frames. Join frames with tiles. Finish off with remaining tiles.

Foundation is a registered Trademark of Wearwell, LLC.

Maintenance

Use a detergent and water solution to clean any fluids or debris, can be pressure washed.

Shipping

Ships in cartons via freight delivery
