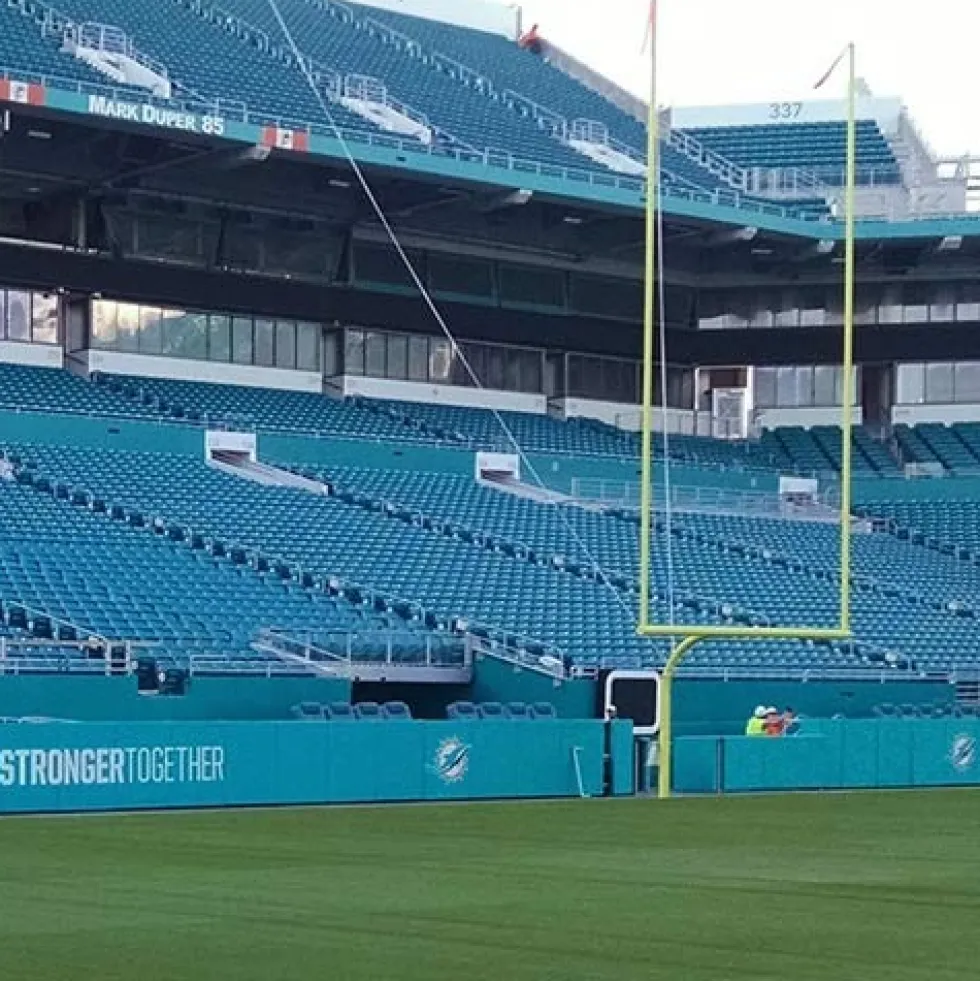

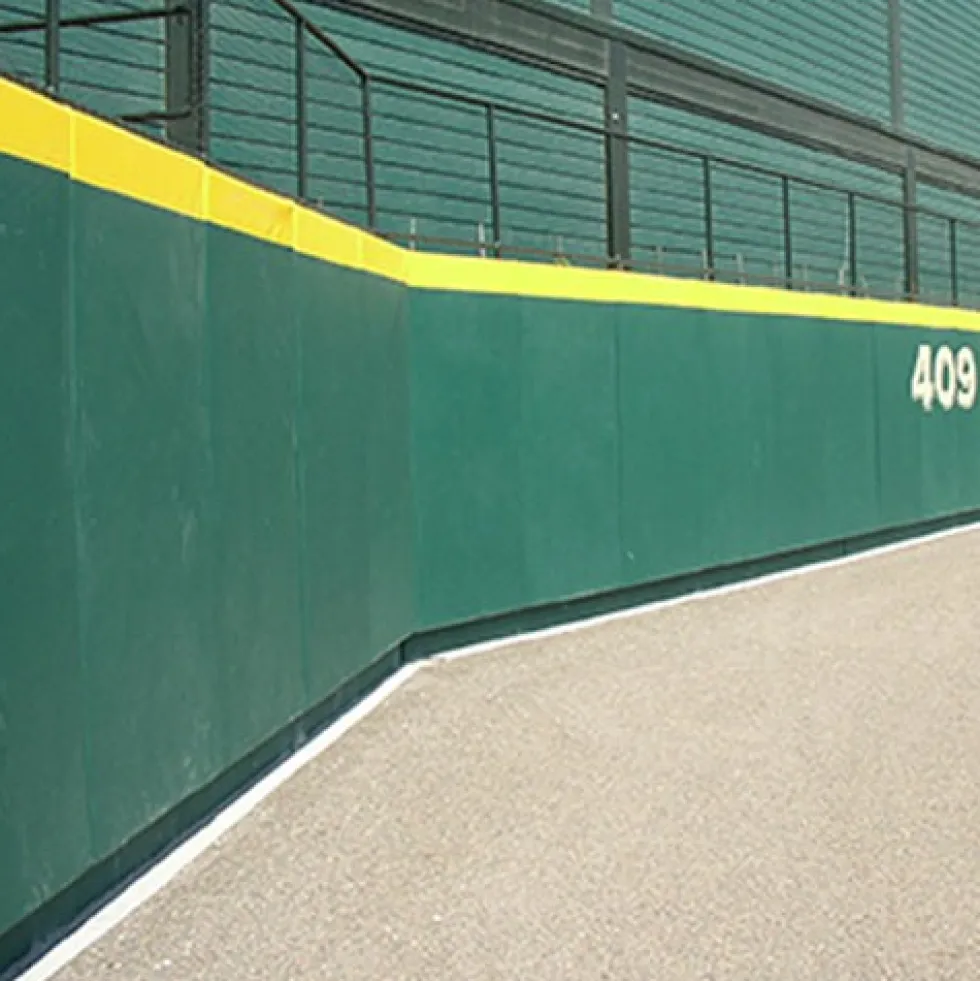

Outdoor Field Wall Padding with Z Clip 7 ft x 4 ft

1. 19 oz. outdoor premium vinyl covering
2. 3-inch polyurethane foam interior
3. 3/4 inch moisture resistant composite backing board
4. Large selection of color choices
5. Z Clip attachment method for concrete and wood walls
6. High UV resistant vinyl cover
7. Made in the USA
8. Graphics available for additional cost

NOTE: This item is a custom order and is not returnable.

The filler foam is glued to the plywood backing to ensure the foam stays in place. The adhesive used in this padding is a resin rubber base adhesive with a high flexibility factor. The glue is water resistant as well as heat and cold resistant and also has a high bonding factor.

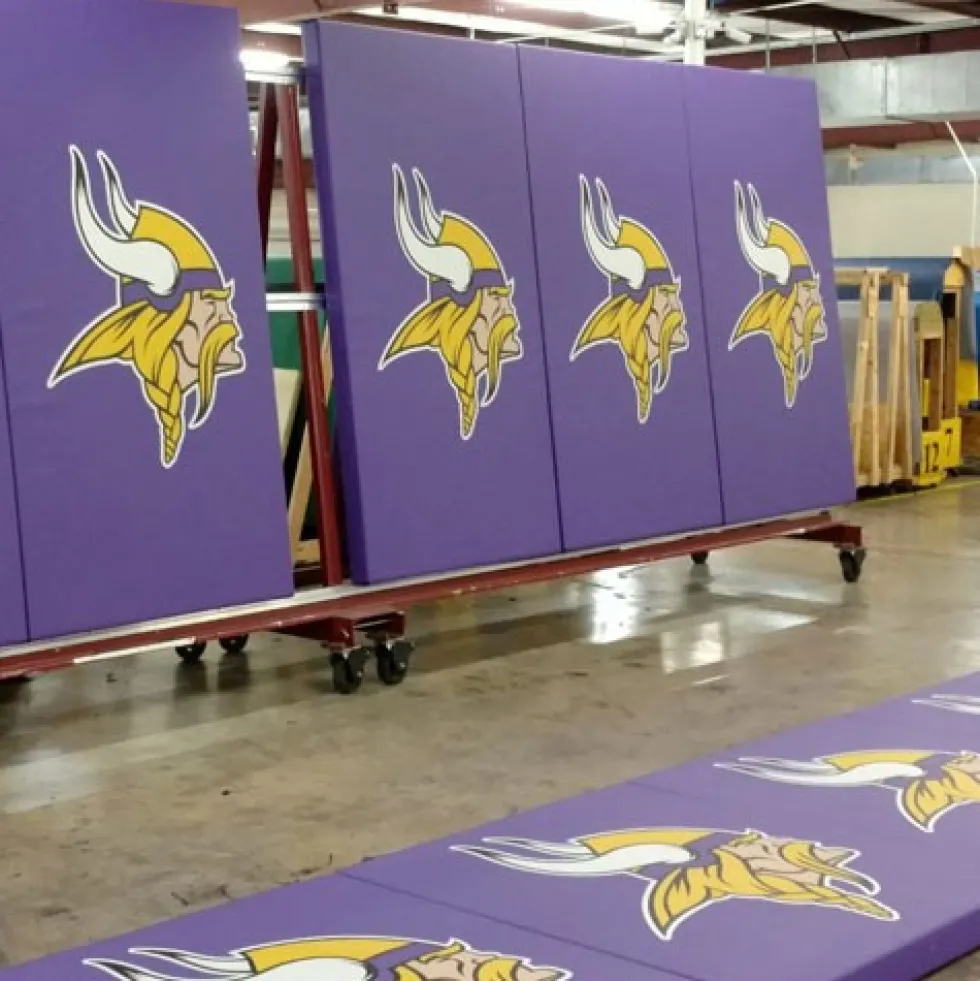

Outdoor Field Wall Padding with Z Clip is available in a variety of sizes and colors, for a custom design. In addition, optional custom digital graphics and/or lettering is available with our Outdoor Field Wall Padding with Z Clip with Graphics products. Please call for a custom quote.

Product Components

Backing:

• Material: 3/4 inch Square Edge AdvanTech Water Resistant Sheathing Panel
• All sides stained and sealed with exterior grade finish
• Exposed plywood surface is painted to match the vinyl color

Vinyl covering:

• Total Weight: 19 oz/sq yd (ASTM D3776)
• Construction: 18×18, 1300 x 1300 Denier
• Grab Tensile: Warp 750 lb/2”, Fill 655 lb/” (ASTM D5034)
• Tongue Tear: Warp 154 lb/in, Fill 135 lb/in (ASTM D2261)
• Adhesion: 38 lb/2” (ASTM D571)
• High UV resistance
• Cold crack: -30 degrees Fahrenheit (ASTM D2136)
• Rot, mildew, and fungus resistant

Foam interior:

• 3-inch high impact 1580 polyurethane foam
• Density: 1.45 – 1.55 pct (ASTM D3574)
• Resilience (% Rebound): 40 – 48 (ASTM D3574)
• Tear Resistance: 1.5 – 2.5 lbs/in (ASTM D3574)
• Flammability: Passes with Class 1 Fabric

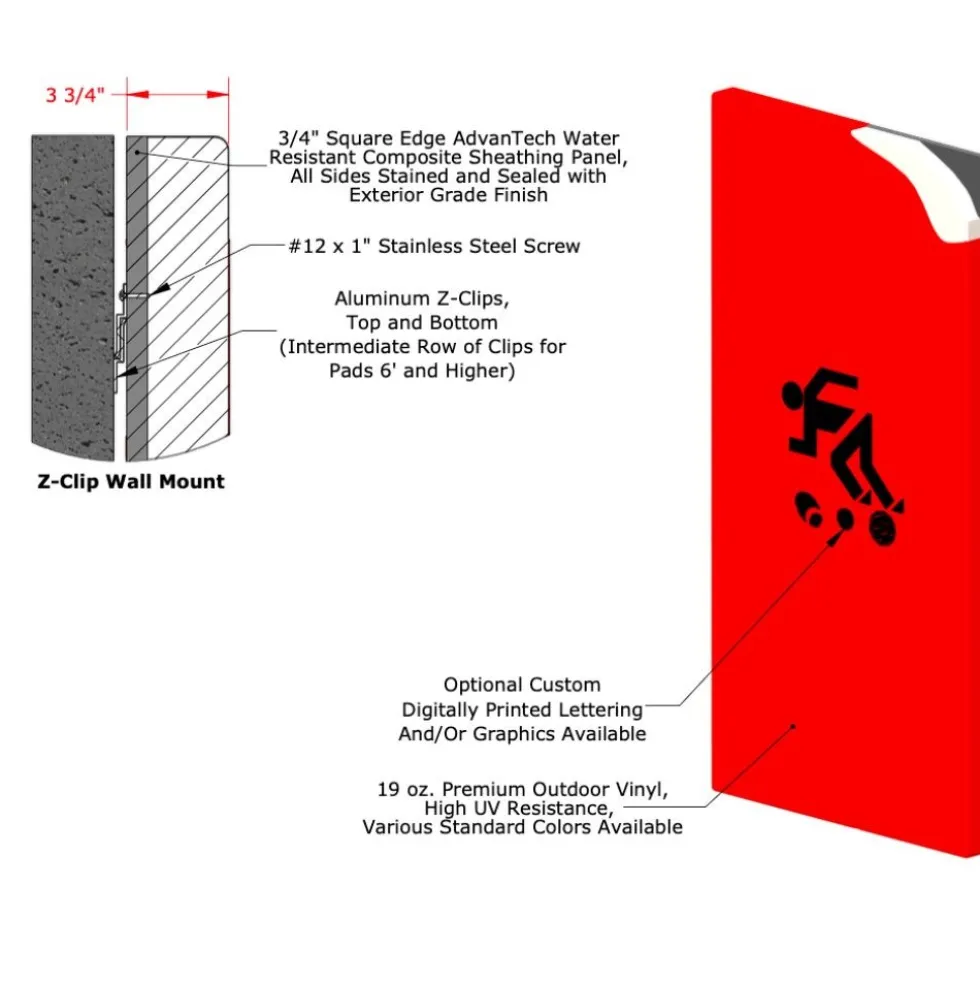

Z-Clip Installation Method

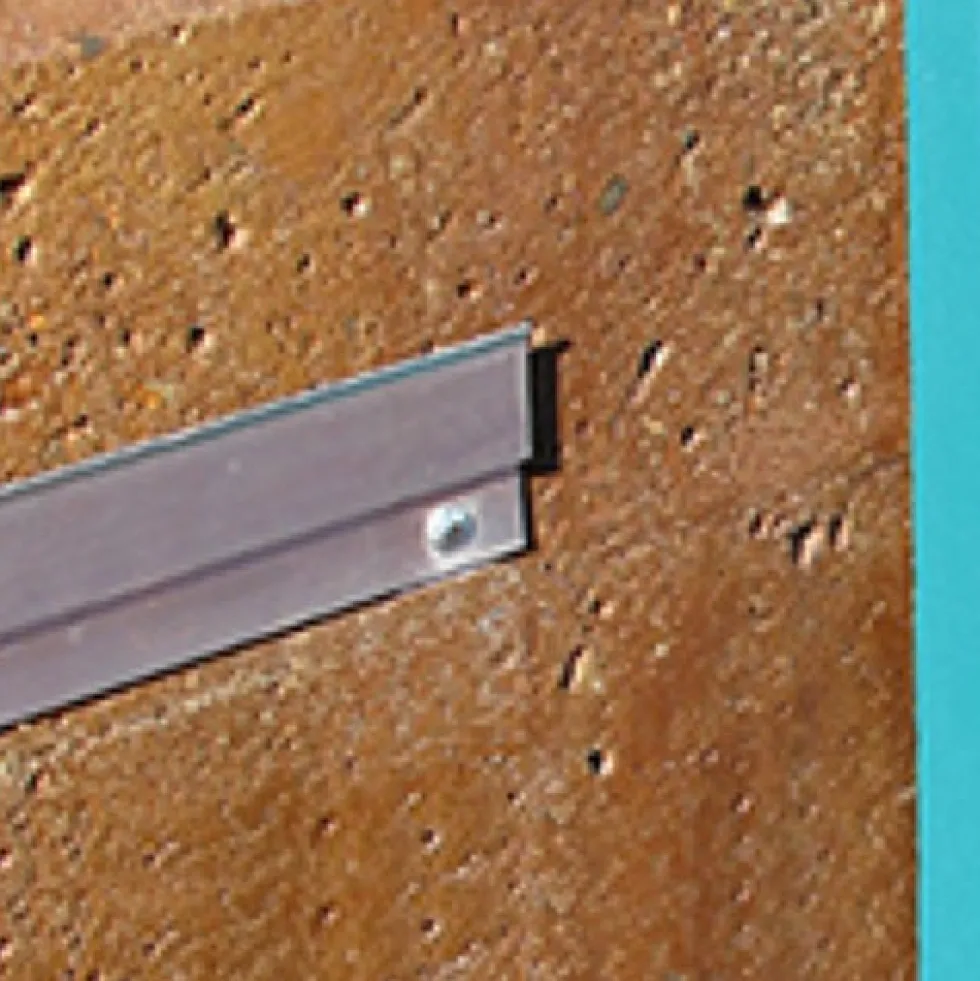

Attachment: Aluminum Z-Clips, 2.5 inches wide x .125 inch thick, mounted to the backer panel using 1/4 x 3/4 inch stainless screws screwed.

Because mounting hardware requirements vary by application, wall fasteners are not included. Furring the middle of the wall pad may be required if the wall is not flat/flush.

Suggested Fastening Hardware for Concrete, Block, or Brick: Tapcon Hex Head: 1/4” x 1-3/4” or Drive Pins/Mushroom Anchors: 1/4” x 1” long

Wall pads are available in custom sizes. Please call to order.

Maintenance

Wipe down as needed.

Shipping

Ships via freight delivery shrink wrapped on pallets.
