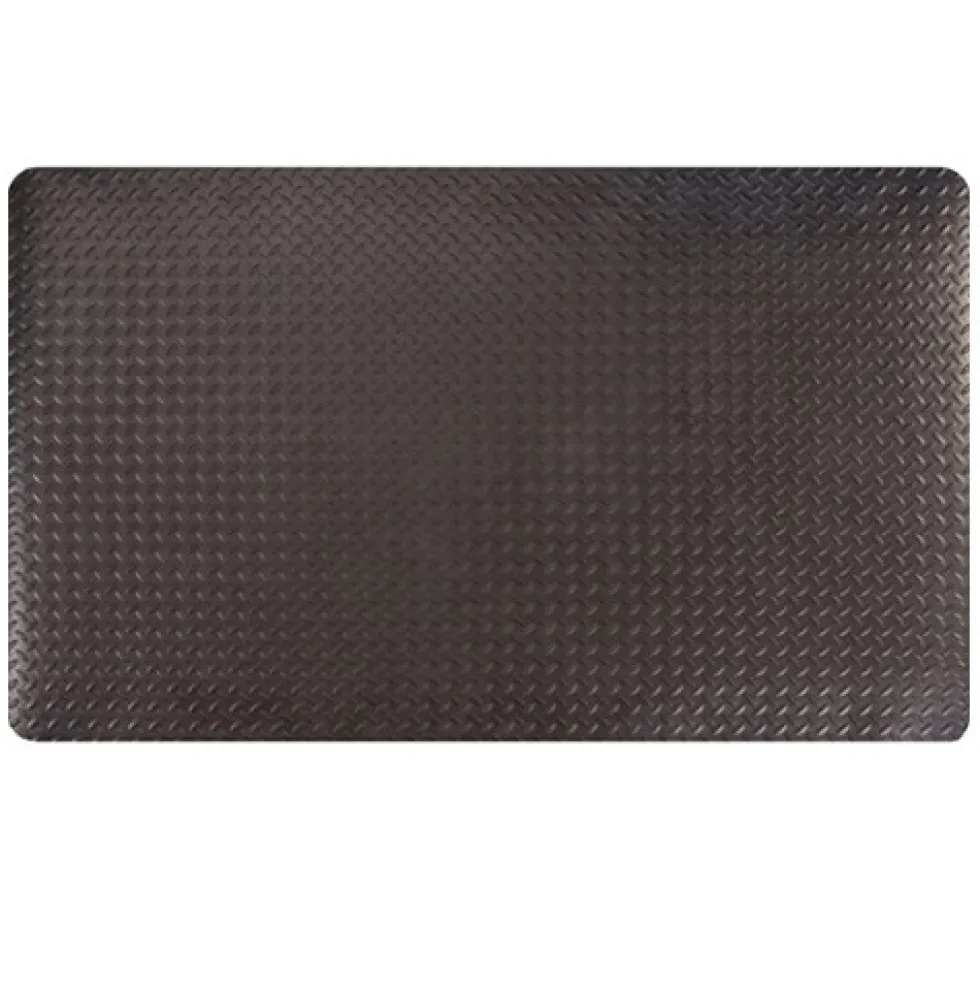

Conductive Diamond Foot Mat 3×10 Feet

1. Conductive diamond vinyl surface
2. Prevents damage to sensitive electronic equipment
3. Grounding snap installed on all standard mats if requested
4. RTT – 10,000 – 100,000 ohms; RTG – 10,000 – 100,000 ohms

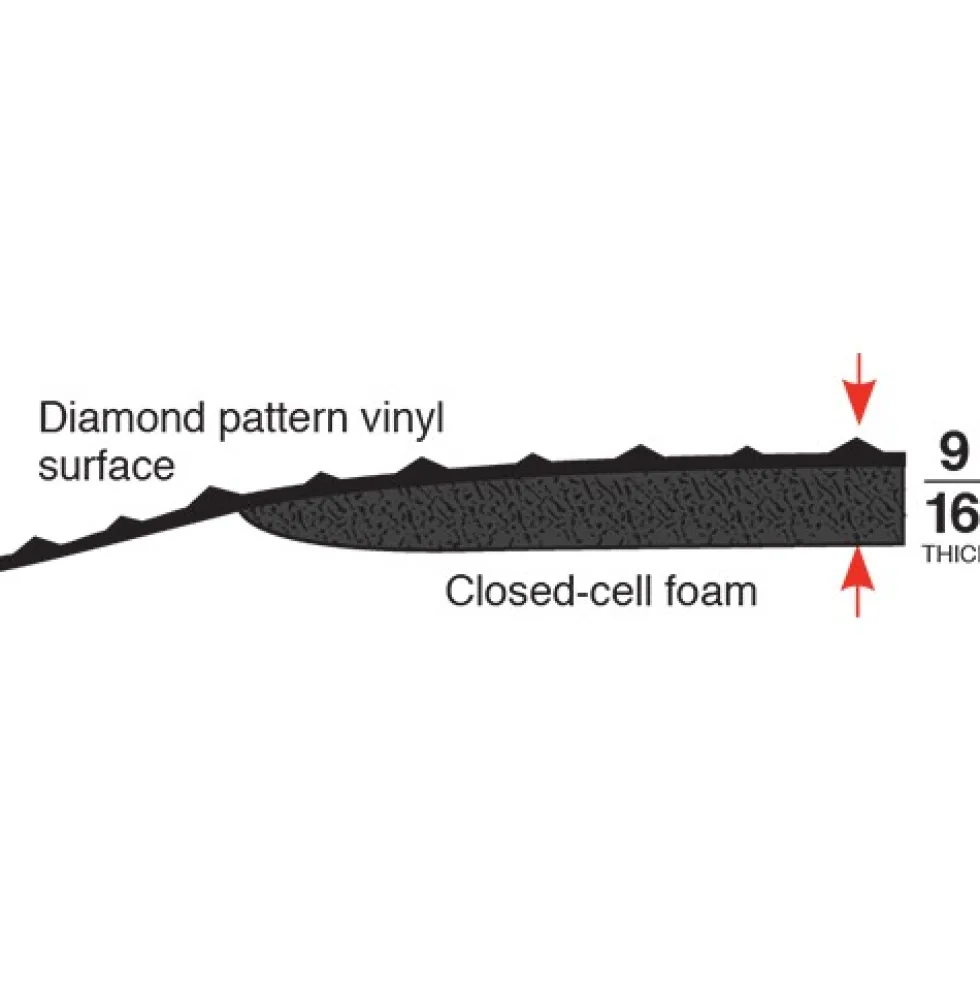

5. Closed-cell foam provides comfort and relief

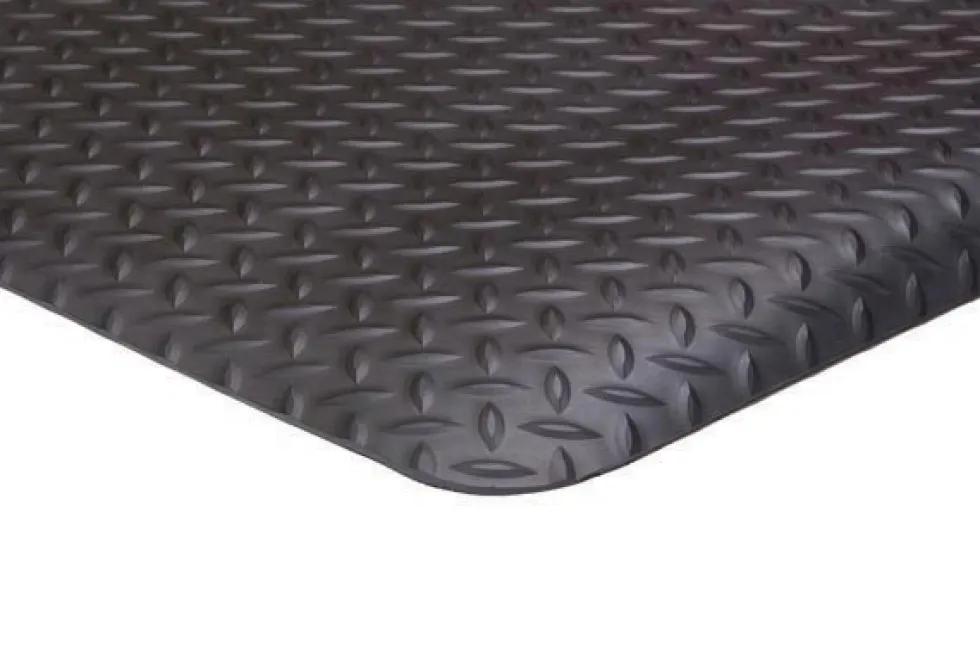

6. Diamond pattern vinyl surface is durable and long lasting
7. Electrically conductive matting
8. Made in the USA

NOTE: This item is a custom order and is not returnable.

ESD Ratings

ESD matting has three classifications: electrically conductive, static dissipative, and anti-static. The Conductive Diamond Foot Mat is rated as electrically conductive, which accepts static electricity the quickest.

RTT – 10⁴-10⁵ ohms
RTG – 10⁴-10⁵ ohms

Chemical Resistance Testing

Results may vary depending on the concentration of chemicals.
No effect: butyl alcohol, animal fats
Little effect: sodium hydroxide, vegetable oil
Moderate effect: acetic acid, acetone, chlorine, water-based cutting fluid, soluble oil cutting fluid, diesel, gasoline, mineral oil, diluted nitric acid, transmission fluid, toluene, trichloroethane
Not recommended: brake fluid, MEK, sulfuric acid, xylene

Custom cut lengths available. Contact Customer Service for more information.
